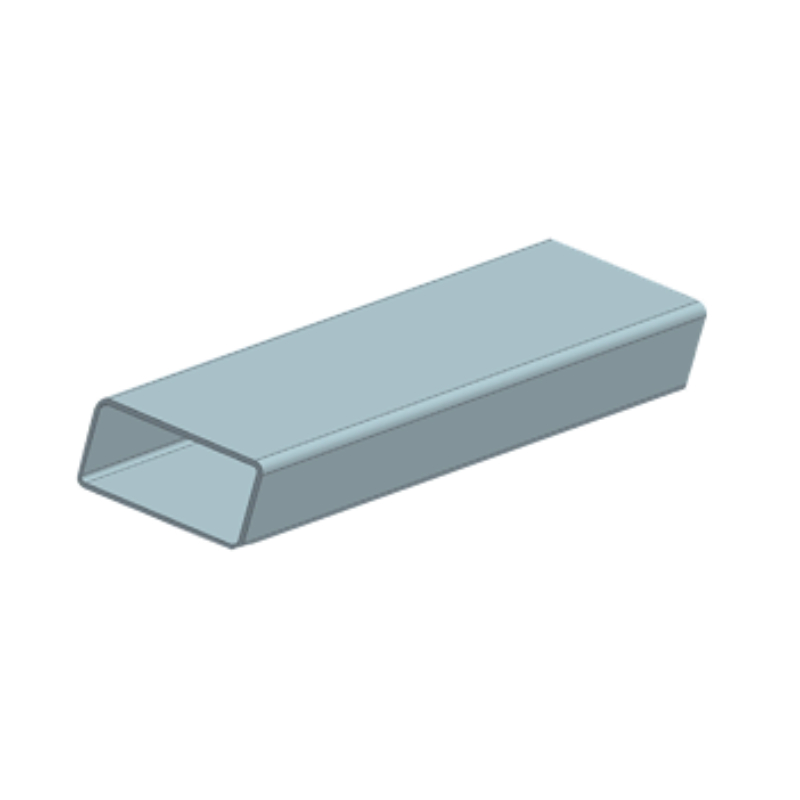

CDHORIZON specializes in Φ48 and Φ60 ringlock scaffolding systems, galvanized steel pipes, and clamp scaffolds with couplers, providing reliable and versatile solutions for a wide range of construction needs. Our services support industrial construction, civil construction, and municipal engineering projects, ensuring that clients receive customized, safe, and efficient scaffolding solutions tailored to their project requirements.

With years of industry experience, we deliver comprehensive and integrated formwork and scaffolding services, covering engineering design and planning, material rental, on-site coordination, and construction management. Our solutions have supported numerous large-scale projects, reinforcing our commitment to quality, safety, and professional service across every stage of construction.

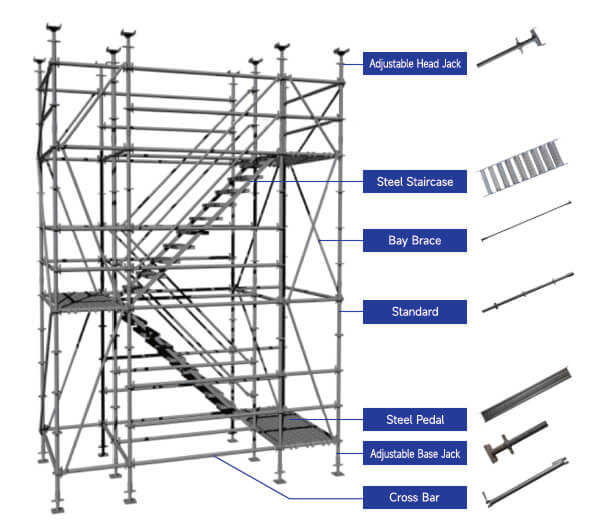

Erection Process

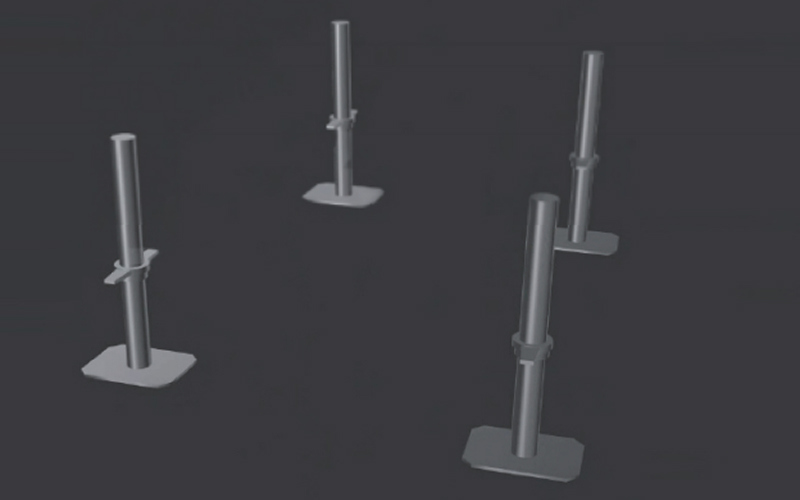

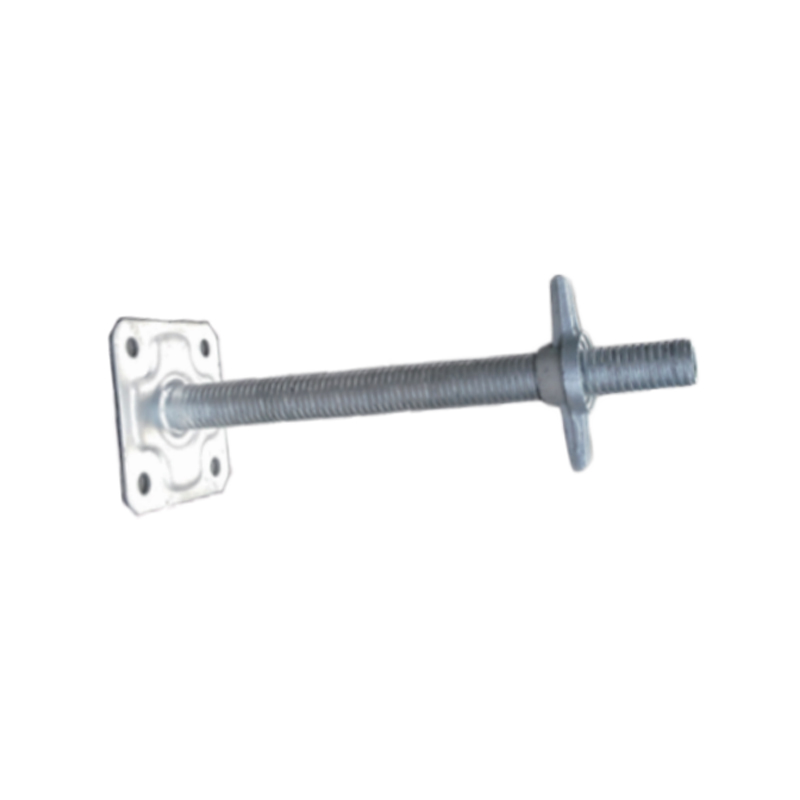

Base jacks positioning and laying in rows

Precautions: The foundation must meet the bearing capacity requiremenets and the initial height of the base jack nut must be determined based on the structual elevation.

Standard Extention

Precautions: The standard is erected to extend upwards on a socket manner.

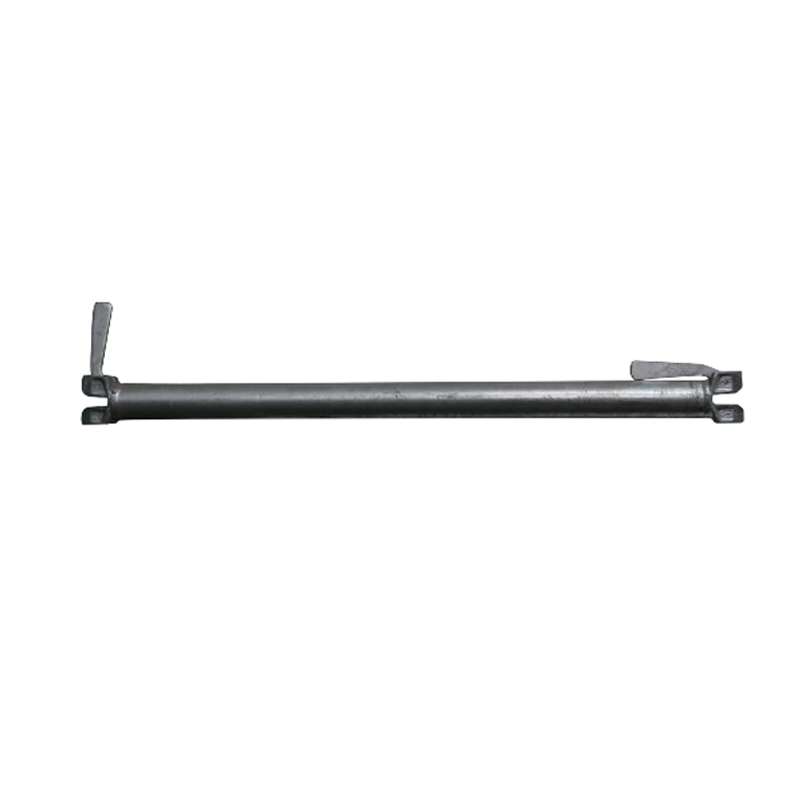

Cross Bars Installation

Precautions: Clarity the spacing, specification and installation positions of the cross bar accordingly to the construction design scheme. When installing on the first floor, it is not advisable to tighten the cross bar wedge first. After checking the level, they should be uniformly tightened.

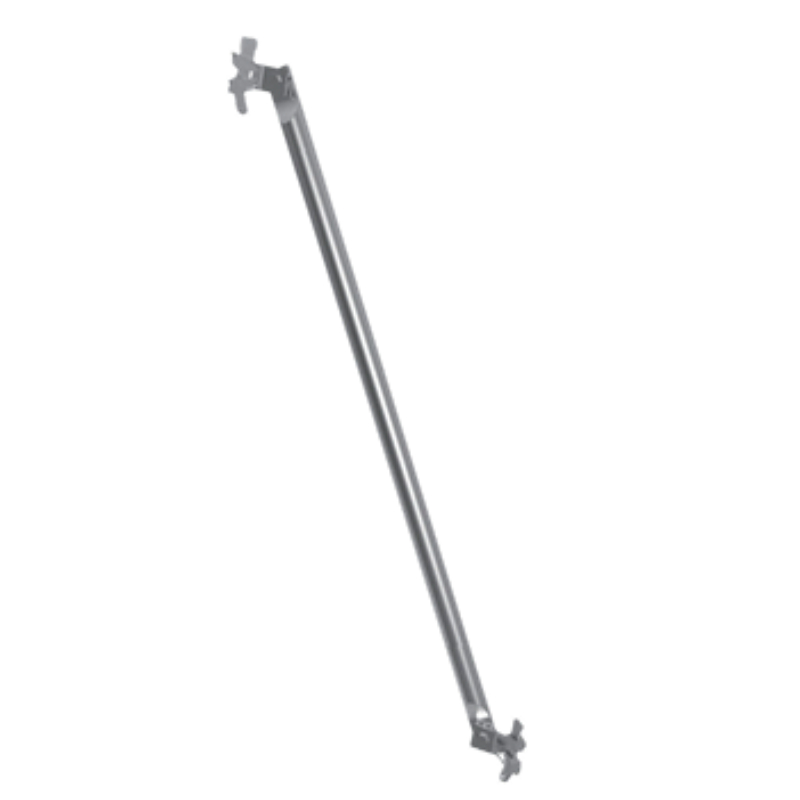

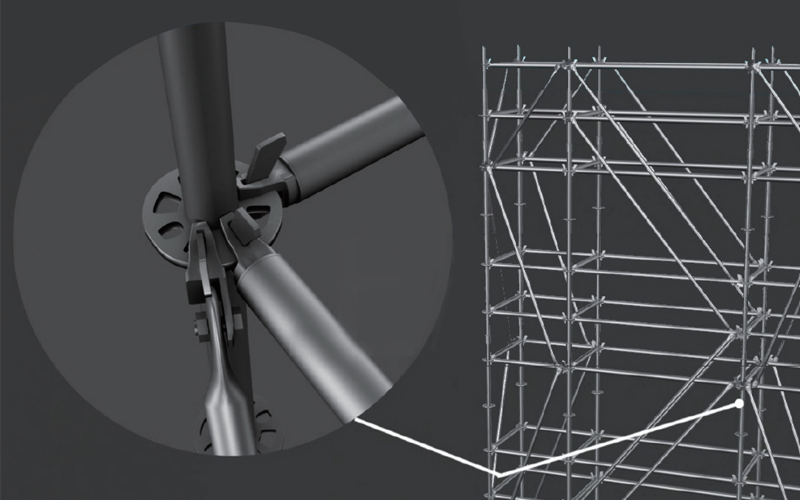

Diagonal Brace Installation

Precautions: Once the horizontal adjustment of the first-floor scaffolding is finished, proceed with the installation of the first-floor diagonal brace. When installing diagonal brace, a triangular force system should be formed with the standard and cross bars.

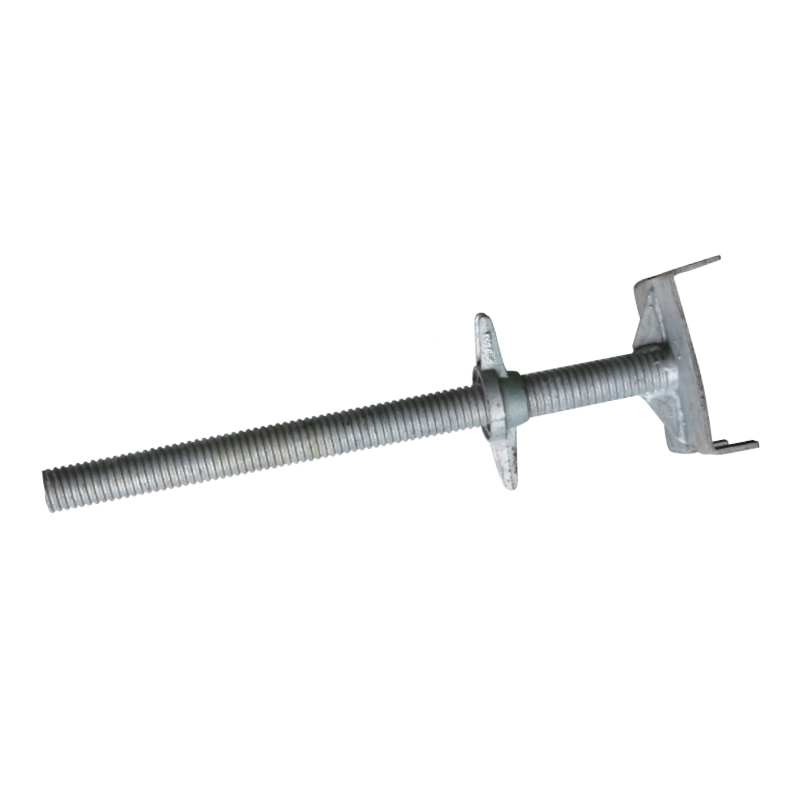

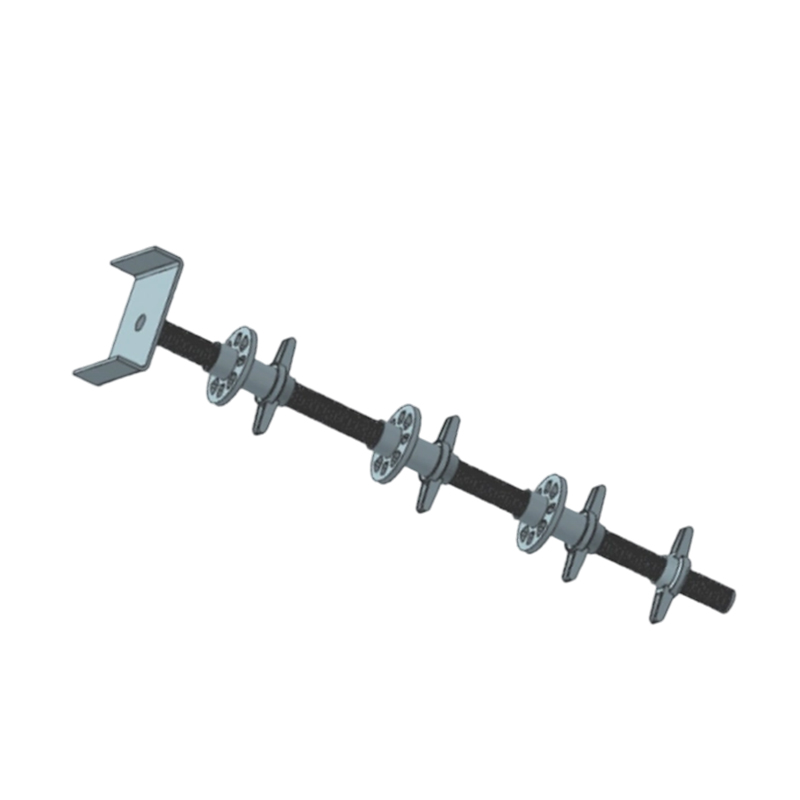

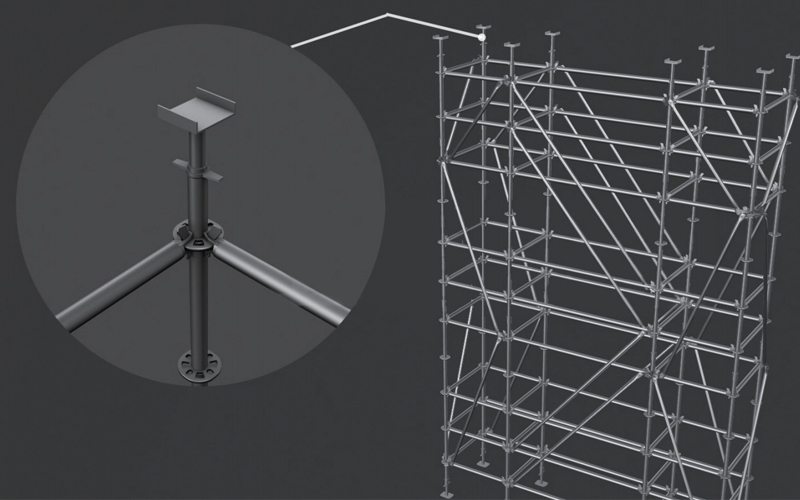

Head Jack Installation

Precautions: In cases where there is a significant gap between the main keel and the U-shaped groove of the head jack, the head jack can be adjusted to rotate an appropriate angle. This adjustment ensures that the U-shaped groove snugly fits against the main keel, preventing any slippage.
