Table Formwork System
Table formwork is a large-scale system formwork designed in a table-like configuration. The table formwork system can be lifted and transferred via hoisting equipment from beneath freshly cast concrete floors to upper levels for immediate reuse. The system comprises three core components:
Decking Assembly
Wooden Plywood, Primary/Secondary Joists, and Connectors
Vertical Supports
Ring-lock Scaffolding Or Steel Props
Transfer Carts
Trolley

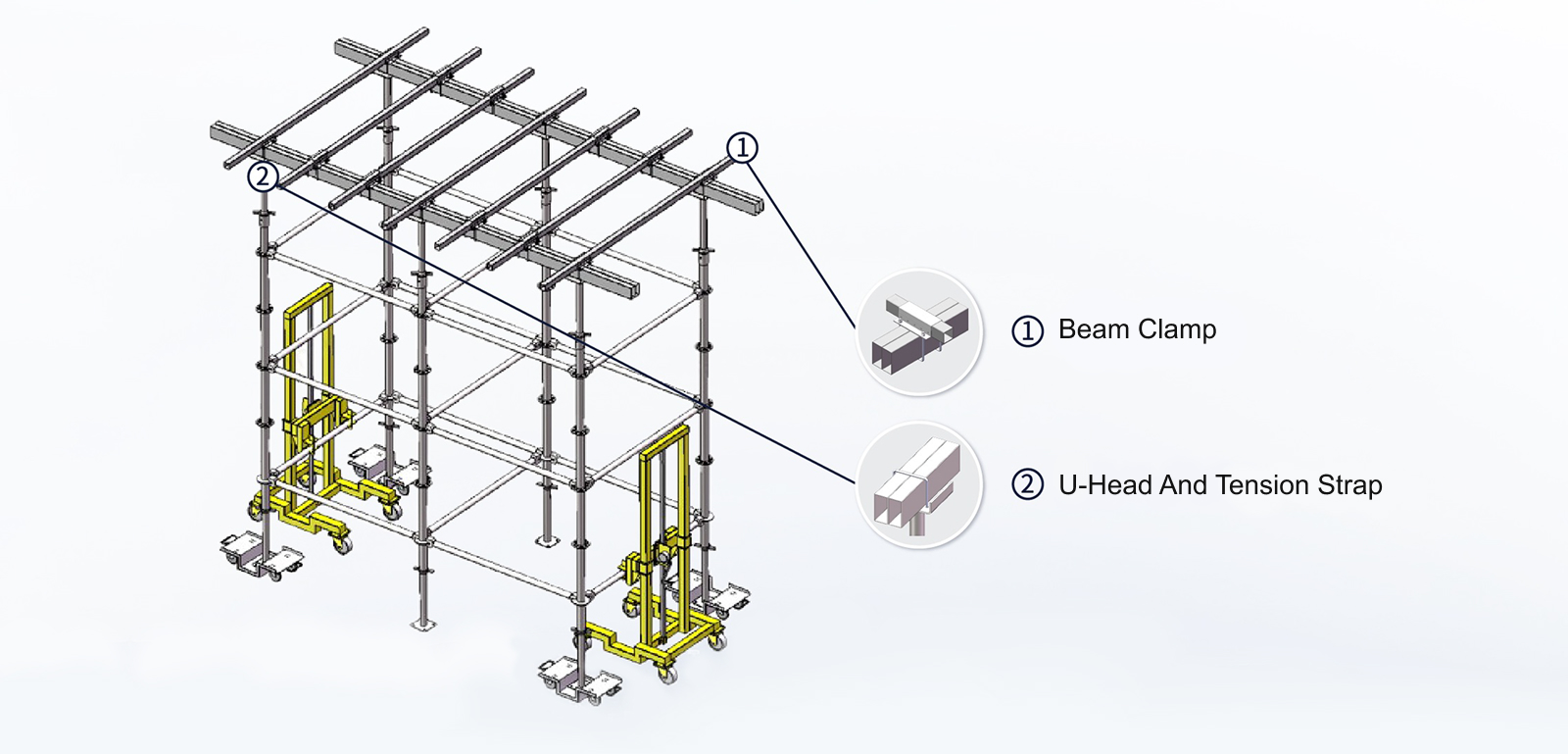

Ring-lock Scaffolding - Steel Beam Joist System
Product Benefits
Efficiency Revolution
Pre-assembled table formwork circulates without disassembly - transported, stripped, and reinstalled as monolithic units, reducing floor cycle times by over 50% versus traditional systems
Cost Savings
Over 50% labor reduction compared to conventional floor formwork through minimized handling and assembly operations
Exceptional Reusability
Standardized modular design enables full material recycling
Standardized modular design enables full material recycling
Core Technologies
Ring-lock Scaffolding -Steel Beam Joist System Products
U-head and Tension strap
Beam Clamps
Ringlock Table Trolley Winch
Ringlock Table Moving Trolley
Ancillary Components
Safety Strap for Base
Safety Strap for Head
Safety Pin
Safety Guardrails
| Ring-lock Scaffolding - Steel Beam Joist System | |||
| U-head and Tension strap | Beam Clamps | Ringlock Table Trolley Winch | Ringlock Table Moving Trolley |
150 x 170 x 650 (mm) |
1 x106x170 (mm) |
|
|
| Ancillary Components | |||
| Safety Strap for Base | Safety Strap for Head | Safety Pin | Safety Guardrails |
Φ6 (mm) |
Φ6 (mm) (Length Adjustable per Vertical Standard Sleeve Configuration) |
Φ10 (mm) |
|
